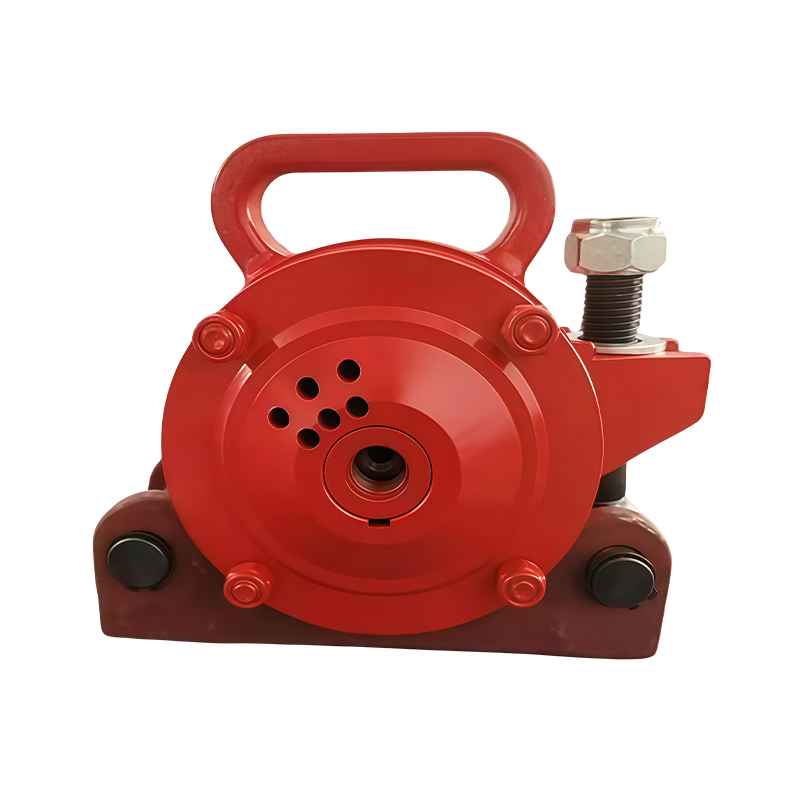

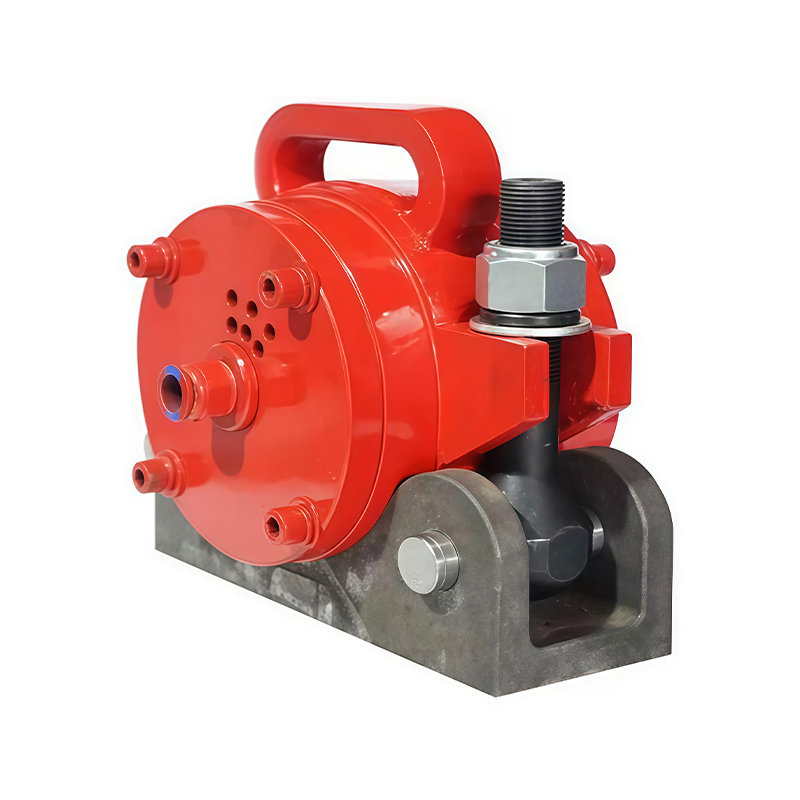

Pneumatic Vibrator

Powered by compressed air, it provides stable and high vibration force, meeting the demands of various industrial scenarios, such as concrete tamping and material handling. It adapts to diverse working environments and operates in harsh conditions, such as humid and dusty conditions. Compared to electric vibrators, it eliminates the risk of leakage or short circuits, offering higher reliability.

Consult

Features
Technical Indicators
Overall Dimension

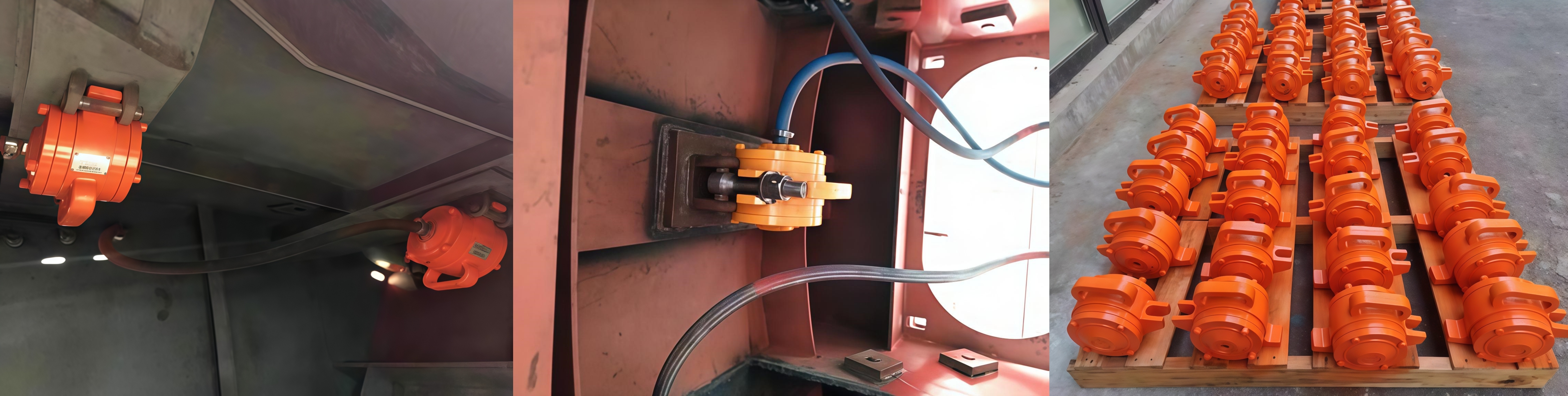

● On-site construction drawings:
Model Exciting Force (KN) Amplitude （mm） Operating frequency （rpm） Pressure （bar） Gas consumption （L/min） Intake pipe diameter (mm) Weight (Kg) QWZ2500 25 1.2 13000 6 1450 Φ16*Φ26 15 QWZ4000 40 1.6 15000 6 1630 Φ16*Φ26 15.8 QWZ6000 60 2.4 15000 6 1800 Φ16*Φ26 16.5

Model	Exciting Force (KN)	Amplitude （mm）	Operating frequency （rpm）	Pressure （bar）	Gas consumption （L/min）	Intake pipe diameter (mm)	Weight (Kg)
QWZ2500	25	1.2	13000	6	1450	Φ16*Φ26	15
QWZ4000	40	1.6	15000	6	1630	Φ16*Φ26	15.8
QWZ6000	60	2.4	15000	6	1800	Φ16*Φ26	16.5
