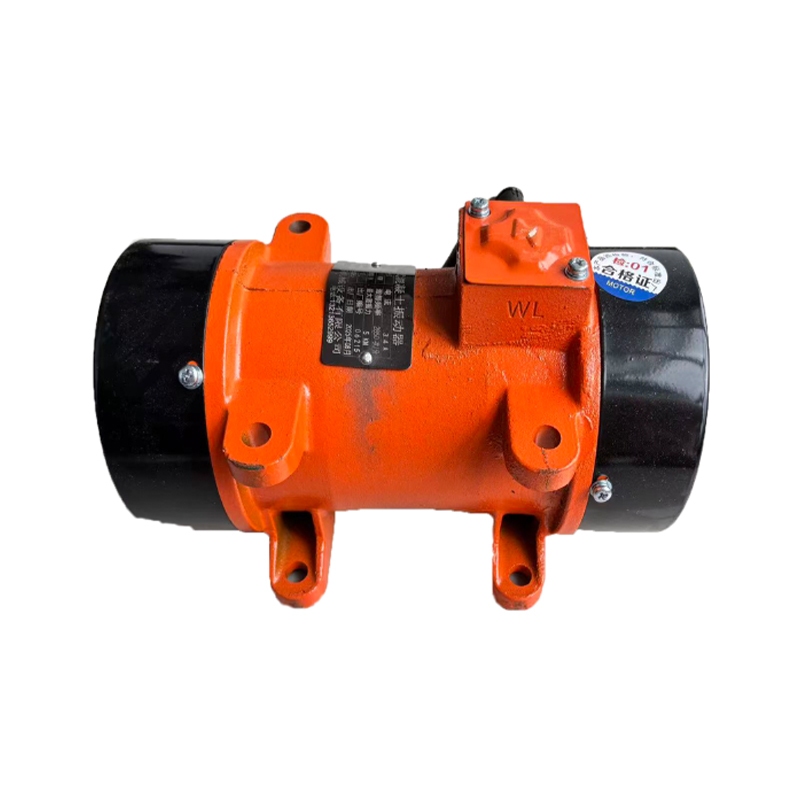

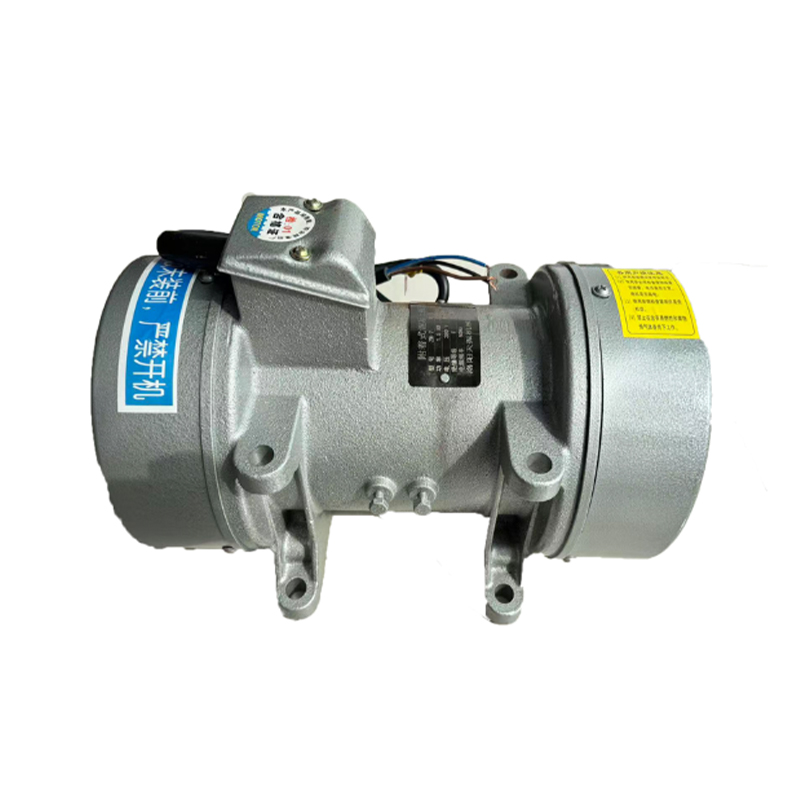

Flat Plate Vibrator

The flat plate vibrator's superior performance makes it a valuable tool for concrete construction. Its efficient vibration, combined with the intricate coordination of the eccentric block and motor, delivers stable, high-frequency vibrations, quickly removing air bubbles from the concrete and significantly improving its density. Its compact and lightweight design allows for flexible handling by a single operator, making it suitable for use in narrow or complex construction sites.

Consult

Features
Technical Indicators
Overall Dimension

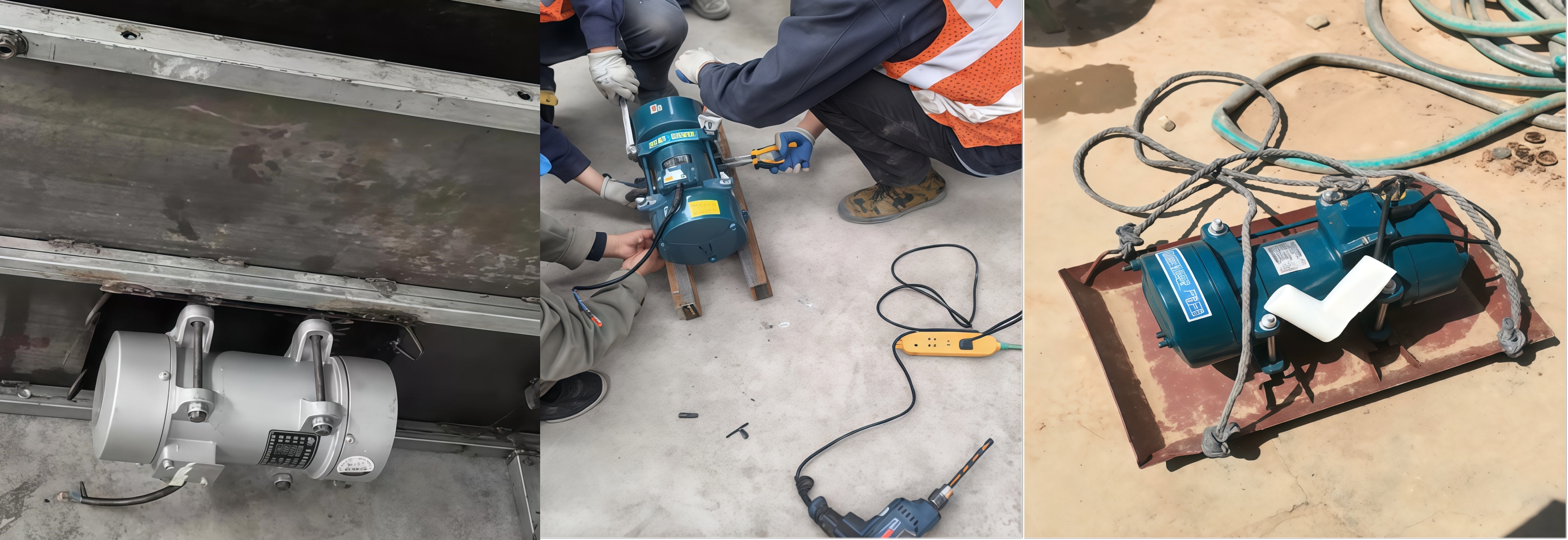

● On-site construction drawings:
Model ZW-2.5 ZW-3.5 ZW-5 ZW-7 ZW-10 Motor power (kw) 0.37 0.75 1.1 1.5 2.2 Voltage (v) 220/380 220/380 380 380 380 Vibration frequency (Hz) 50 50 50 50 50 Exciting Force 250 350 500 500 1000 Overall dimensions (mm) 223*148*160 275*170*165 350*205*190 375*190*220 375*205*225 Installation dimensions 110*120 120*138 163*168 140*160 175*175 Deadweight 7 8.5 20 16 22

Model	ZW-2.5	ZW-3.5	ZW-5	ZW-7	ZW-10
Motor power (kw)	0.37	0.75	1.1	1.5	2.2
Voltage (v)	220/380	220/380	380	380	380
Vibration frequency (Hz)	50	50	50	50	50
Exciting Force	250	350	500	500	1000
Overall dimensions (mm)	223148160	275170165	350205190	375190220	375205225
Installation dimensions	110*120	120*138	163*168	140*160	175*175
Deadweight	7	8.5	20	16	22
